SP64 Portable Colorimeter

SP64 Portable Colorimeter

Price on request


Product no.: 50-01080/90
Shipping time: Discontinued
Weight: 0,00kg

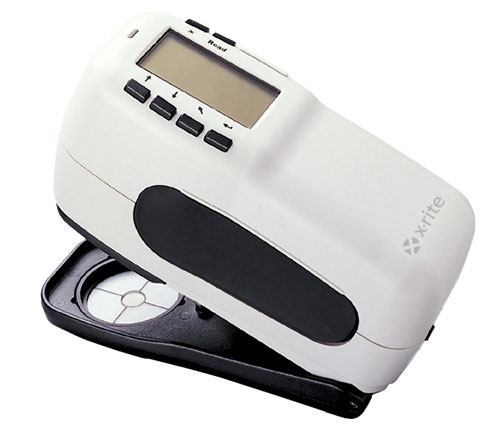

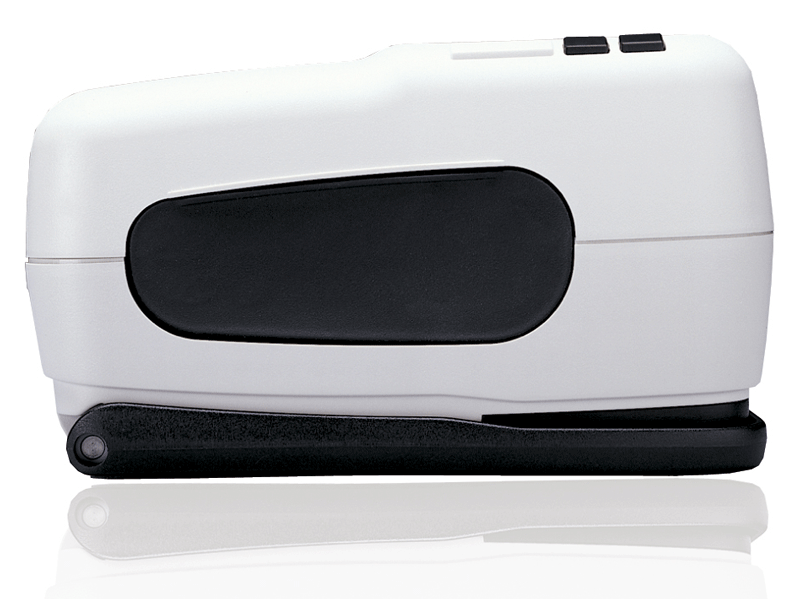

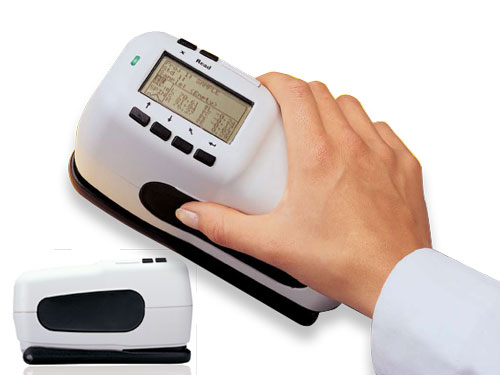

SP64 Portable High End Colorimeter
Measuring geometry d/8° sphere geometry

Product discontinued, for the new measuring units please see X-Rite Ci6x-Series.

The colorimeters of the SP-series have a d/8° measuring geometrics. The integrating sphere for the production of diffuse illumination consists of Spectralon, a very durable, high-reflective material. Peel or yellowing of the the sphere wall coating belong to the past. So that the devices of the SP-series are not only for your portable use best equipped, but also for the tougher conditions of the quality control at production bases.
The SP64 is available with a 6.5 + 14 mm or 20 mm aperture (SP64 X or LX).
The measurements are performed simultaneously with and without gloss confinement. Thus, the influecne of the surface texture and the gloss on the color can be determined.

  • light and handy colorimeter for mobile use
  • well-priced and high-classed apparet
  • long-living, the tungstic lamp is construed for approx. 500,000 measurements
  • 2 models with different measuring apertures available (look below at the table)
  • because of a PC access it can be used with color measuring software
  • optional PC-Software disposable
  • optional instruction and training in our training room or at your company
  • demonstration and customer tests of all our instruments after announcement in our training room

Specifications:

Measuring Geometry:d/8° sphere geometry
Target Window/Measurement Area:
Model SP64 X:
6.5/ 4 mm | 14/8 mm variable (Art.-Nr. 50-01080)
Model SP64 LX:20 / 14 mm not variable integrated (Art.-Nr. 50-01060)
Standard Observers:2°/10°
Spectral Range:400 - 700 nm
Spectral Interval:10 nm
Inter-Instrument Agreement:0,13 ΔE*ab @ 14/8 mm / 0,20 dE*ab @ 6,5/4mm on 12 BCRA-II tiles
Repeatability:0,05 ΔE*ab on white ceramic
Illuminants:A, C, D50, D65, D75, F2, F7, F11 and F12
Color Spaces:L*a*b*, ∆L*∆a*∆b*, L*C*h°, ∆L•∆C*∆H*, ∆E*ab, ∆ECMC, ∆E CIE94, XYZ, Whiteness and Yellowness according to ASTM E313-98
Storage Capacity:1024 standards with tolerances
Measurement Range:0 - 200% reflection
Measuring Time:< 2 sec.
Measurements Per Charge1000 in 8 h
Data interface:RS-232, USB with optional adapter
Dimensions H x W x L:10,9 x 8,4 x 19,6 cm
Weight:1,1 Kg
Feature:Removeable battery pack NiMeH / 7,2 V 1.250 mAh, 4 hours charging time
Accessories provided:Calibration standards, operation manual, AC adapter, carrying case

More technical data on request.

Optional accessories: Adaptable instrument holder, pellet holder, fluid holder, universal holder for 3-dimensional samples, battery charger, battery pack and different target windows are available on request.

Individual offers, software, training:
The shown prices are recommended prices of the producer.

We are welcome to submit you an individual offer with software and training.
