RAL F9 Revise Camouflage Colors

RAL F9 revise camouflage colors

In order to achieve an effective camouflage in the desert area, the german army introduced 7 revise camouflage colors. These colors are also available as water-soluble. Depending on the field of application one, two or all three colors of the camouflage painting are over painted with camouflage colors. Also the coating of the whole vehicle into a camouflage color is possible.

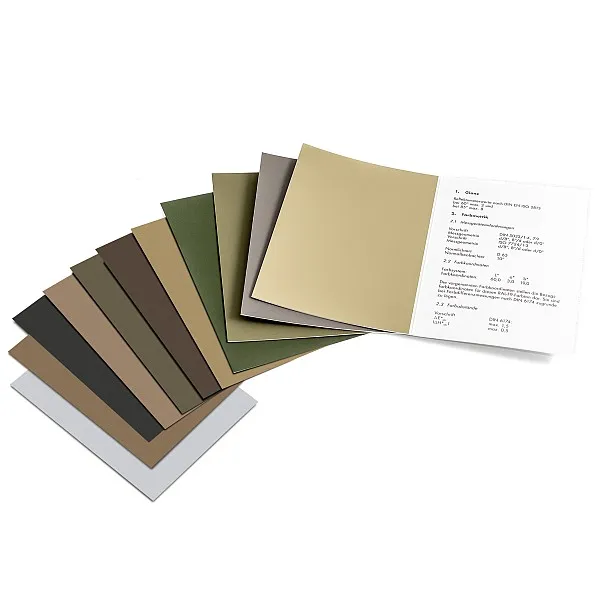

The 7 revise camouflage colors are:

• RAL 1039-FP Sand-beig
• RAL 1040-FP Grey-beige

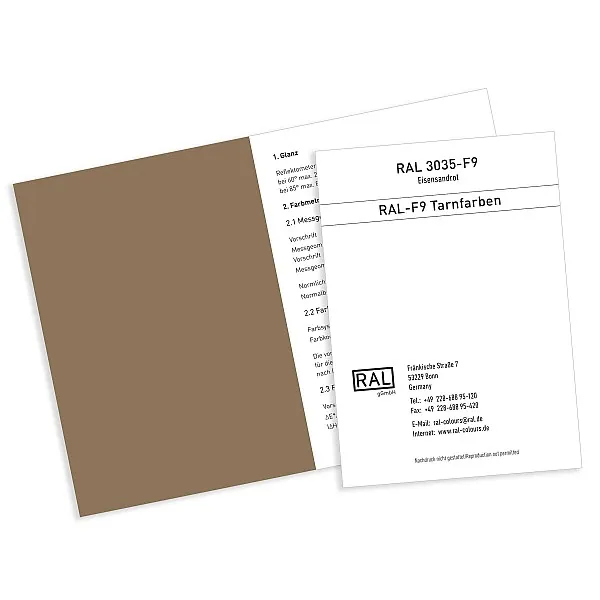

• RAL 3035-F9 Iron-sand red
• RAL 6040-F9 Pale olive
• RAL 7050-F9 Camouflaging gre
• RAL 7051-F9 snow-grey
• RAL 8031-F9 Sand-brown

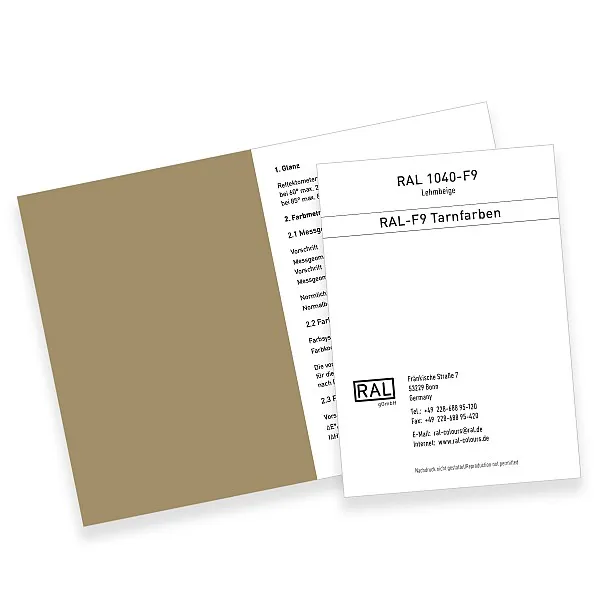

The color cards of the camouflage colors (when printed) contains:

• Glossy value (2 at 60°, 8 at 85°)
• Measuring instrument requirement for quality control in the color production
• Color co-ordinates L*a*b*
• Permitted color gaps
• Spectral reflection factor in following levels:  400nm, 450 nm, 500 nm, 550 nm, 600 nm, 700 nm, 800 nm, 1200 nm

Spectral reflection factors do not only have to be proved by the creation of camouflage colors not only in the visible area from 400 – 700 nm, but also in the IR-area up to 1200 nm.
